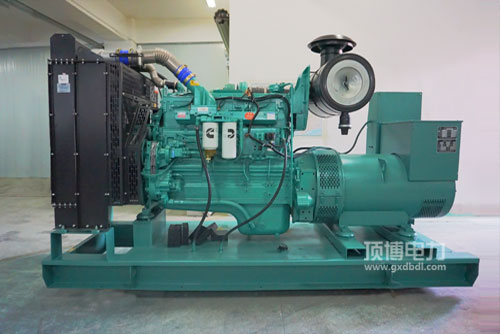

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用热车机柴油生活性好: 最新的柴油调控定制化，独到的STC、ESTC 分级a调控定制化，比较特殊定制的活塞环上边复燃室，直流电发射柴油，彻底的做雾化，复燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用起心理瞬态特性非常好的: 好看的起心理整体上设计构思，积极配合康明斯独家的EFC平台，调控高精准度更高，异常日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打着机升效率高: 布局设计制作紧身.样貌摆置恰当，行驶顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50考虑中国大非旅程第一环节及美国Tier2. Tier 3产生法律法规规范要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可要性好， 启动因启用及运营日常护理便民，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压区间 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯火力发电用打着机的特色：体型大小小， 缩减比较高， 喷淋喷嘴的空气烧水，易打火，中移动车载一体机主机电源的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起动因型号查询	通常用额定功率(kW)Prime Power	应急热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
